Custom WNJ Series High Precision WEDM

Home / Productum / WNJ Series High Precision WEDM

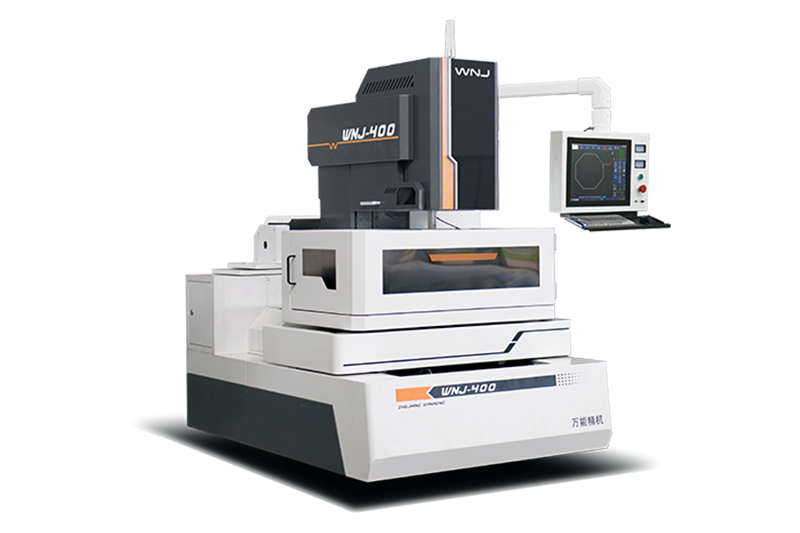

WNJ Series High Precision WEDM

WNJ Series High Precision WEDM

WNJ-400 WNJ500 WNJ-530 WNJ-640 WNJ-630 WNJ-800 WNJ-1080 WNJ-1200

WNJ Series High Precision WEDM

+86-575-83030220 Contact Us


PREV：Nulla prior productum
DEINDE：SERVO TOndent INVENTUM
  • Descriptio
  • Additional Information

  • Feature

    1. cost-efficacia

    2. Acta sectione

    3. High efficientiam

    4. Maximum damnum

    5. Maximum industria consummatio

    Munus

    1. Z-axis servo imperium, clavis profundum occasum, UV-axis servo imperium, stabilior subtilitas.

    2. Aluminium processus moduli, PCP instrumentum processus moduli, 0.08mm filamen moduli processus

    3. Iaponia THK, Sina Taiwan in cochleis duce argenteo

    4. Modularization omnium electricum imperium (defectum rate est fere 0)

    5. summus configurationis computatrum industriae (operatio lenis, nulla TARDO)

    6. Power defectum reset munus

    7. sui developed ultra-summus celeritate summus frequentia potentia copia

    8. X.Y-axis servo imperium

    9. One-piece sheet metal, simplicius et commodius

    10. 150L duplices sentinam percolantur piscinae aquae

    Praecipua technica parametri functionis

    Exemplar / Technical Specifications WNJ-400 WNJ-500 WNJ-530 WNJ-640 WNJ-630 WNJ-800 WNJ-1080 WNJ-1200
    Mensa plaga et cereus
    Mensam X et Y axis peregrinatione 400×320mm 500×400mm 500×300mm 600×400mm 630mm 800×630mm 1000×800mm 1200×1000mm
    Maximum recta crassitudine 280mm 280mm 300mm 300mm 300mm 400mm 400mm 500mm
    Maximum onus facultatem 300kg 400kg 300kg 400kg 600kg 800kg 1200kg 1500kg
    Maximum intervallum dimensionis ±6°/100mm ±6°/100mm ±6°/100mm ±6°/100mm ±6°/100mm ±6°/100mm ±6°/100mm ±6°/100mm
    Molybdenum filum diameter range 0.15~00.2 (0.18 standard)
    Machining accuracy ≈±0.005mm
    Maximum secans efficientiam ≥15000mm²/h (unum cultellum) ≥7000mm²/h (unum secans et correctum unum)
    Superficiem meliorem asperitatem Ra≤1.0um
    Potentia copia ac potentia 380V ± 10% ad tres phase et quattuor-filum; 50±1HZ≤2KW
    Pondus totius machinae 2000Kg 2500Kg 2200Kg 2600Kg 3000kg 4000kg 5500kg 7000kg
    Apparatus Dimensiones (Longitudo, Latitudo, Height) 1750×1200×2000mm 1900×1300×2000mm 1800×1300×2200mm 2000×1400×2200mm 2150x1750x2300mm 2350x1950x2400mm 2500x2200x2500mm 3000x2300x2800mm
    Laborans fluidum tristique 150L Filtratio dualis piscinae aquae magnae, ad libitum
    Imperium systema Universalis auto-evoluta ratio

De Company

WNJ is a leading Custom WNJ Series High Precision WEDM factory in China, is a global enterprise specialized in spring machines over 28 years, be a leader in the Chinese spring machinery in spring coiling machine, spring forming machine, spring grinding machine, spring temper furnace and other related equipment. The company is acknowledged as ONLY ONE new national technology enterprise of spring machinery industry in China, and devote ourselves to provide better product for customers CNC spring coiling machines and solution.
Societas technologiarum novarum nationum unam solam inceptis in veris machinarum industriam adiudicavit, et etiam principale membrum societatis vernalis Sinarum.
-  Customer orientation is considered with customized solutions
-  Offer services to overseas customers with global agent
-  A powerful develop & design capability. Our own mould workshop enables the company to work on OEM/ODM projects easily
-  Over 200 skilled worker,50 technicians and one group of 20 engineers
-  Easy reconfiguration and adaptation to new production/manufacturing realities;
-  Main market: Europe, USA, Korea, Turkey, Argentina, Malaysia, Singapore, India, Japan, UK etc.
-   Imported Taiwan computer, Japan Sanyo Electric, Set up offices in many provinces in the country
-   Foreign agents throughout Asia, Europe, the Middle East, which can provide professional life after-sales service.
